Sun-display

SC80

1.CPU:MTK6771,octa core,2.0GHZ
2.RAM/ROM:4GB+64GB/ 8GB+128GB
3.Support Gravity Sensor \ Compass \ Gyro \ Light sensitive \ Distance sensing
4.Supports WIFI/BT/GPS
5.Supports 2G/3G/4G communication
6.Supports NFC/RFID(UHF)
7.Support 1D/2D scanner/Fingerprint
8.Battery:0000mAh, 3.8v high voltage lithium battery
9.Camera:Front camera: 5MP fixed focus Rear camera: 13MP auto focus 1A true flash


Product Basic parameters
Product Name

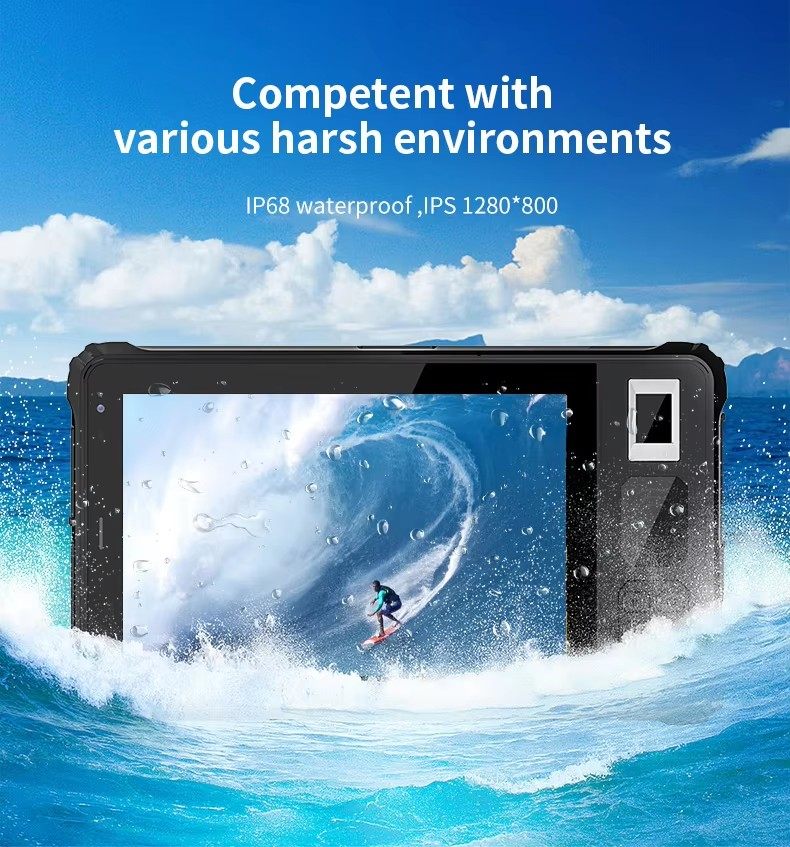

SC80 8 Inch Industrial IP68 Waterproof Rugged Tablet Industrial Tablet Panel Pc Touchscreen Industrial Android Rugged Tablet
Size weight
258x150*22.5mm/780g
Ccolor
Black, Support for custom colors
Screen size
8 inch
Screen resolution
IPS 1280*800, Support for customisation
TP touch screen
10-point touch G+G, hardness ≥6H, support wet hand touch screen, glove touch screen

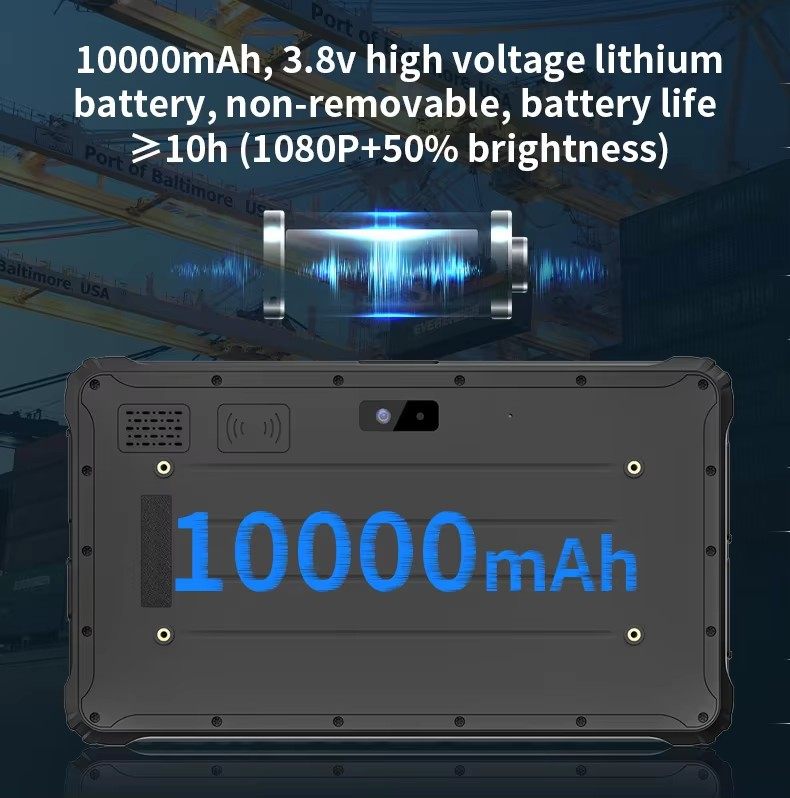

Battery
10000mAh, 3.8v high voltage lithium battery,Duration of battery use on a single charge≥10h (1080P+50% brightness)
 Camera
Front camera: 5MP fixed focus (13 million can be customized in batches)
Rear camera: 13MP auto focus 1A true flash
Buttons
Power button*1
Volume keys*2, Vol+, Vol-
Scan*1, F key
Custom keys*6, ,P1、P2、P3、P4、P5、P6
Hardware configeration
Speaker, receiver, microphone
*1, speaker 1.2W/8Ω aluminum film, waterproof speaker;
*1, waterproof handset
*1, MIC,waterproof rating
CPU
MTK6771,octa core,2.0GHZ,(If you need other CPUs, you can consult our sales manager for other quality products)
RAM/ROM
4GB+64GB/ 8GB+128GB
Gravity sensor
Available and high quality
Compass
Available and high quality
Gyro
Available and high quality
Light-sensitive
Available and high quality
Distance sensing
Available and high quality
Fm Radio
Available and high quality

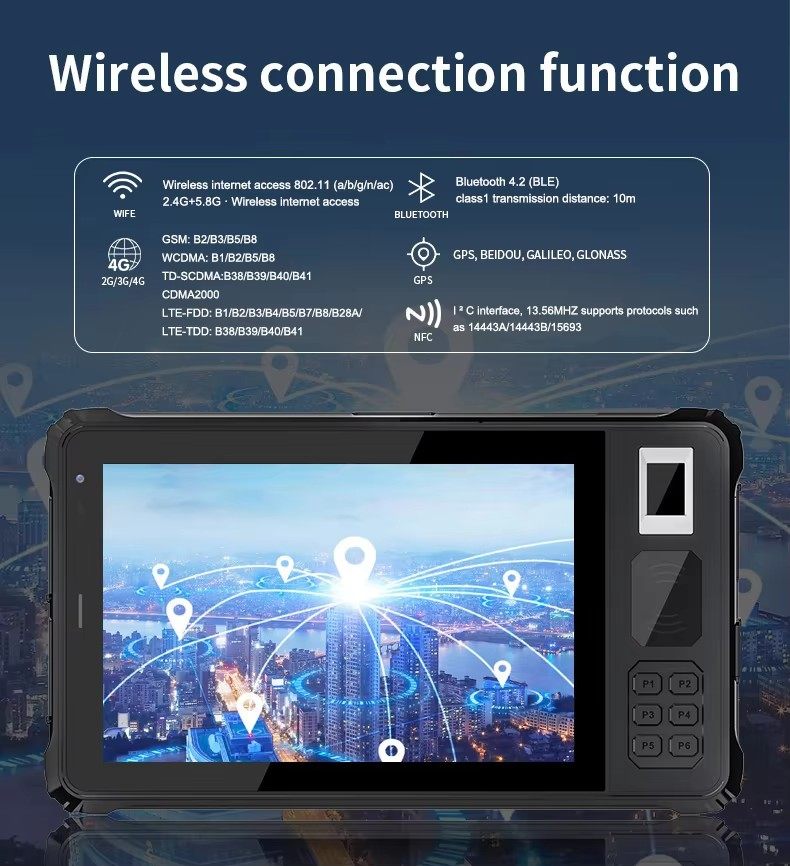

Wireless connection
WIFI
WIFI 802.11(a/b/g/n/ac) frequency 2.4G+5.8G dual-band WIFI Dual frequency WIFI
Bluetooth
Bluetooth 4.2 (BLE) class1 transmit distance:10m
2G/3G/4G
GSM: B2/B3/B5/B8
WCDMA: B1/B2/B5/B8
TD-SCDMA:B38/B39/B40/B41
CDMA2000
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28A/
LTE-TDD: B38/B39/B40/B41
GPS
GPS, Galileo、GLONASS
NFC
I²C interface, 13.56MHZ supports 14443A/14443B/15693 and other protocols, which is consistent with the NFC application of Android phone type
(The card reading area is default on the back of the fuselage and can be customized in the front)

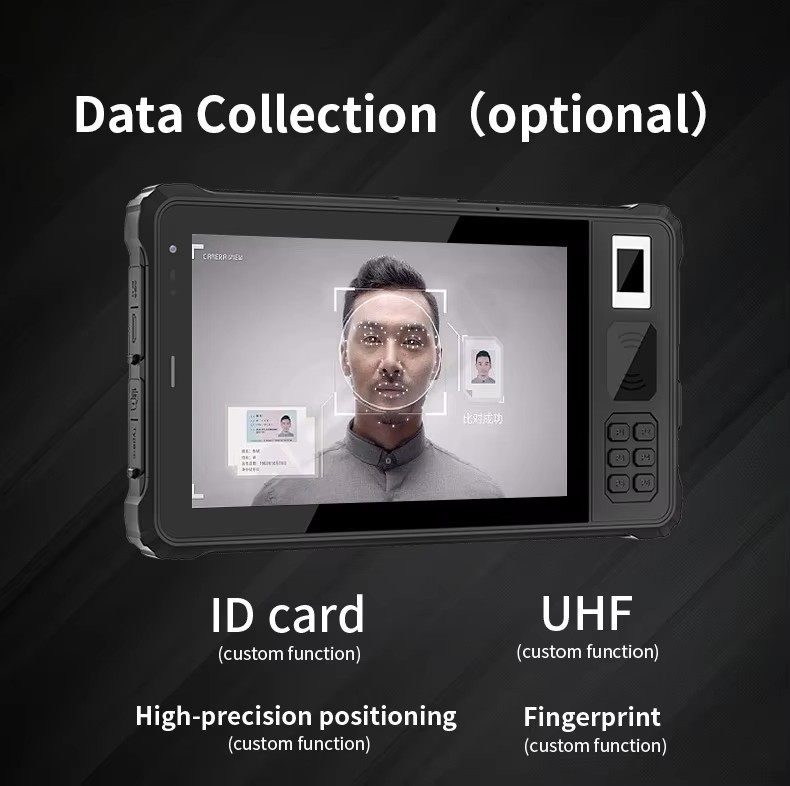

Customised data collection functions
In stock configuration

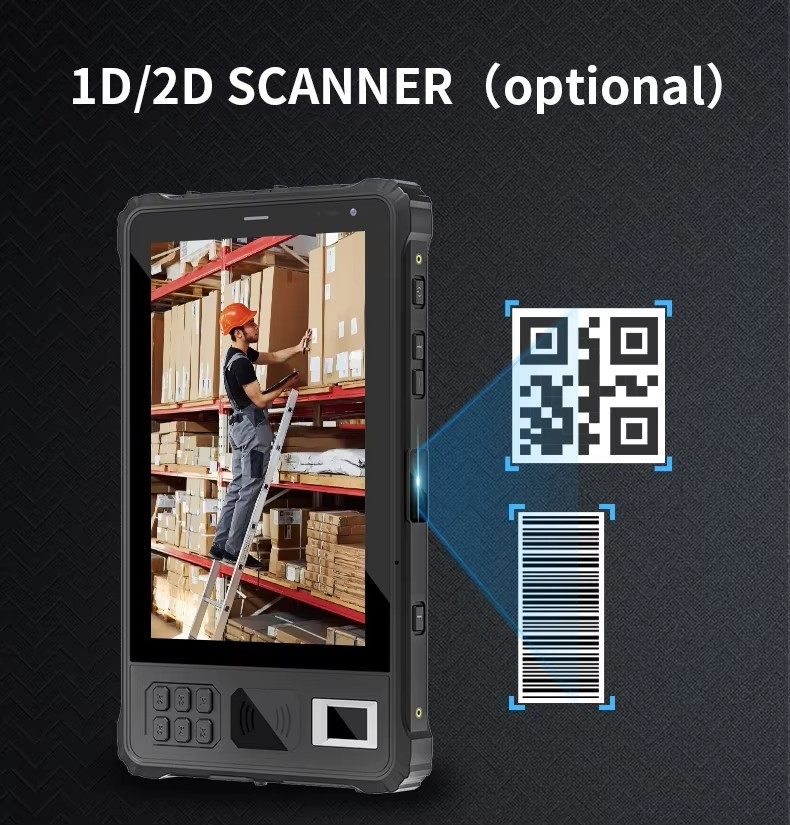

1D/2D scanner(The A80PT with 1D/2D scanner is permanently in stock in our warehouse and can be shipped out within 3 days.)
ID card
Standard second-generation offline Ministry of Public Security certified ID card reader module
UHF
distance1:1.5M-3M:
distance2:5M-8M
distance3:10M-18M
High frequency
13.56MHZ adapt 14443A/14443B/15693 protocals
Fingerprint
1: Ordinary industrial fingerprint
2: Fingerprint certified by the Ministry of Public Security
3: FBI certified fingerprint

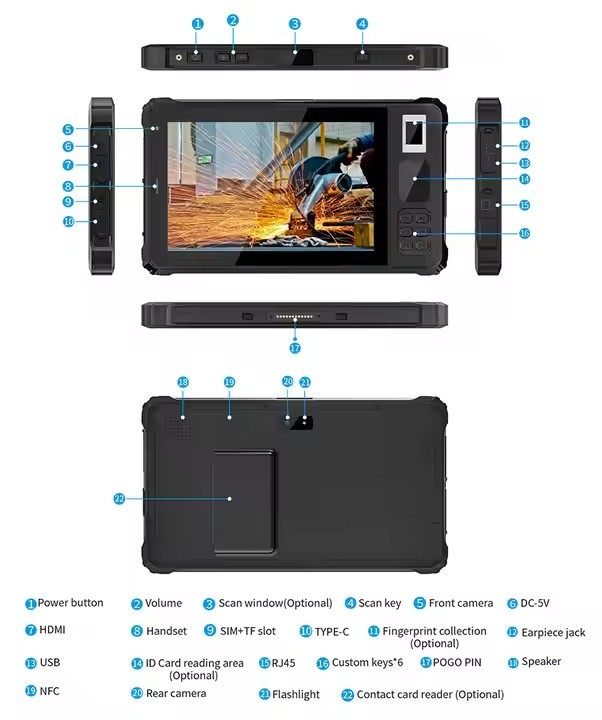

Ports
TYPE-C
*1,Type-C USB2.0,support OTG
Type -A
*1, Type-A USB2.0
RJ45
*1
Earphone Jack
*1,3.5mmStandard headphone jack
TF Card
*1,Maximum support 256GB expansion
SIM Card
*1,Standard Micro SIM card slot
MINI HD
*1,Mini HD
DC port
*1, 5V/3A 3.5mm
POGO PIN
*1 ,12Pin USB+charger
Product reliability
Drop height
1.2m Free fall to wooden floor
Working temperature
-20℃~60℃
Storage temperature
-30℃~70℃
Humidity
Humidity: 95% Non-Condensing
